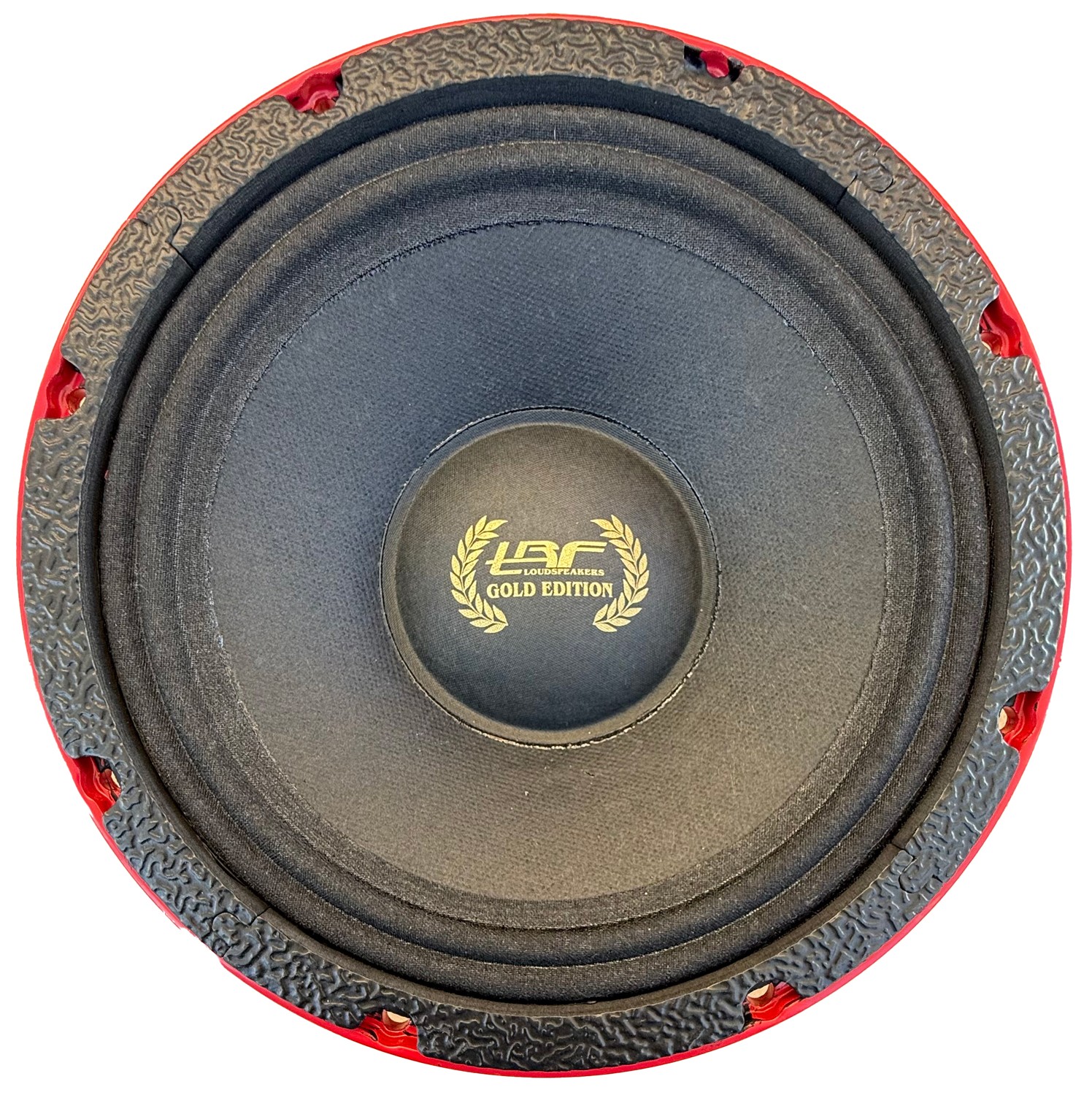

TRF 8MR600ND X8

MODEL: TRF 8MR600ND X8Nominal diameter:8" (203mm)MAX Power Handling:600WRMS Power Handling:300WFrequency response:110Hz-8KHZNominal impedance:8ΩSensitivity: 100.5 dBmagnet: NeodymiumVoice coil diameter:2.5"Voice coil wire:CCAWEquivalent volume:Vas 7.9LFree Air Resonance:Fs 106 HzMechanical Factor:Qms 5.17Electrical Factor:Qes 0.23Total Factor:Qts 0.22Cone Area:Sd 214cmMechanical Mass:Mms 19gBI Factor:BI 18.1TmDc Resistance:Re 6.0OhmsOverall Diameter:8.27"(210mm)Front Mount Baffle Cutout:7.32"(186.7mm)Mounting Depth:3.25"(82.5mm)Overall Depth:3.62"(92.20mm)
