Περιγραφή
| Size |
3" |
|---|---|
| Impedance |
4 Ohm |
| Freq.range |
100 – 10 000 Hz |
| Sensitivity |
85,2 dB |
| Outer diameter |
84 x 84mm |
| Mounting hole |
76mm |
| Mounting depth |
38mm |

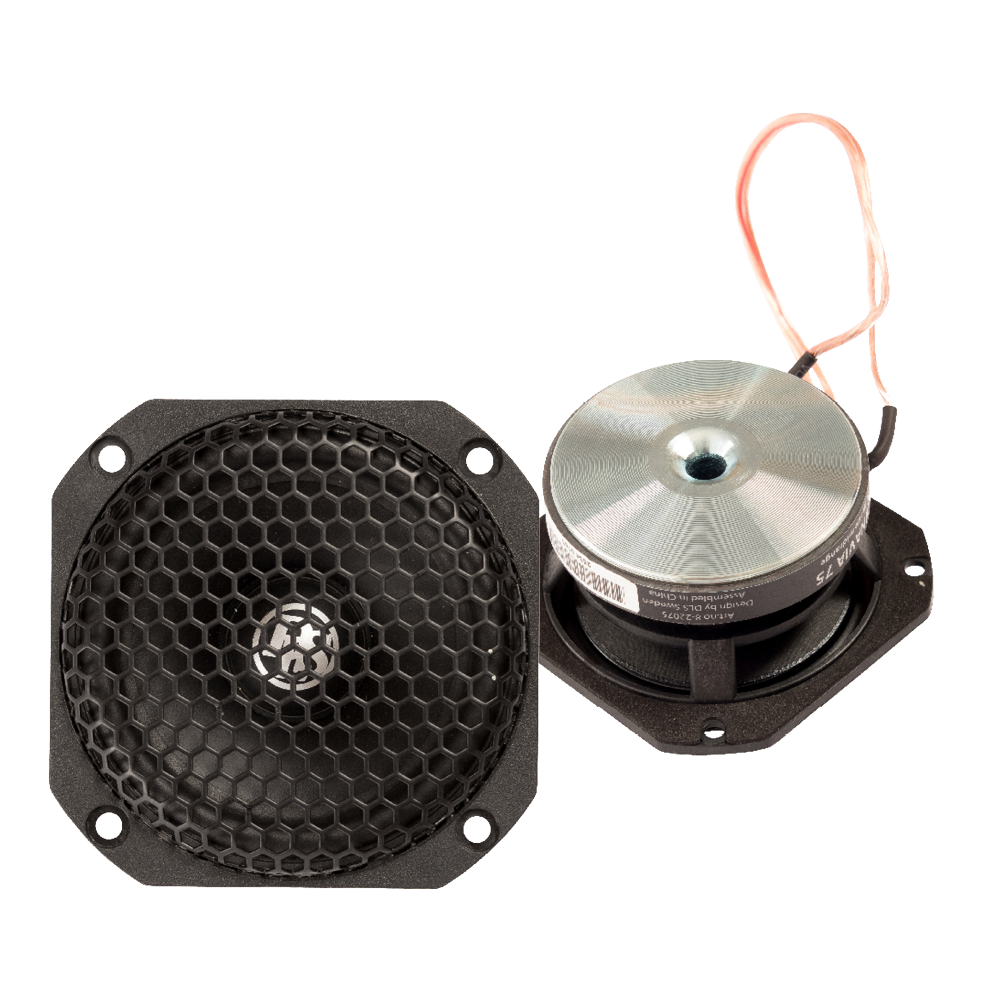

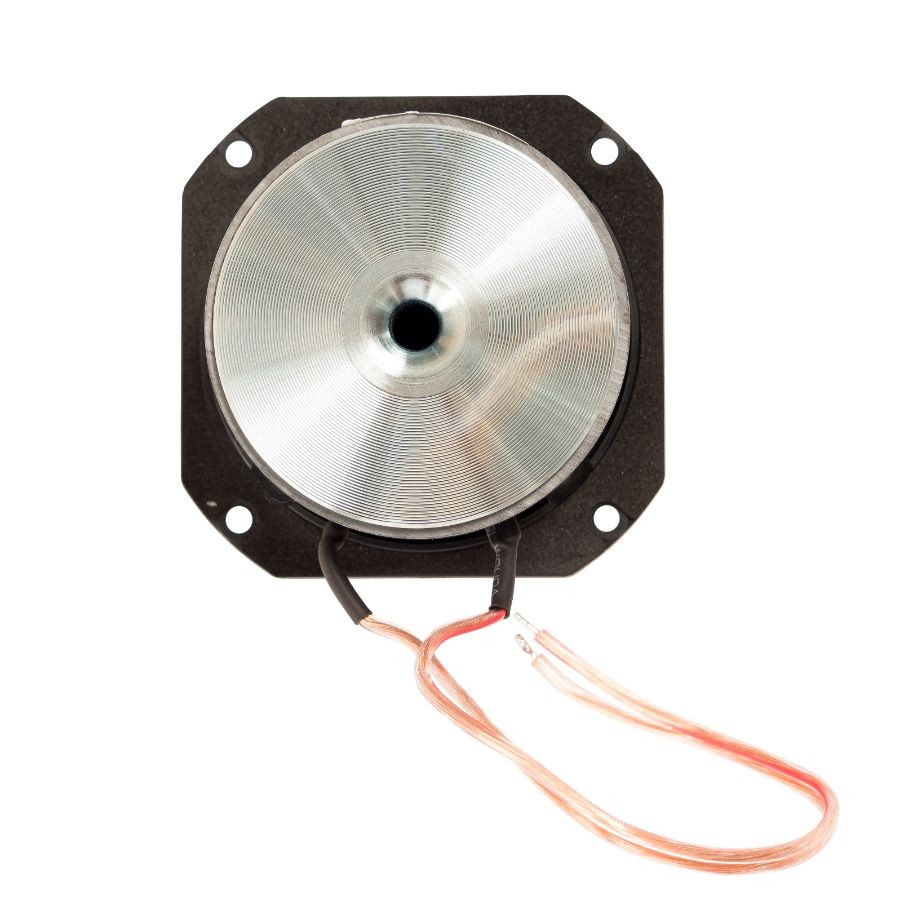

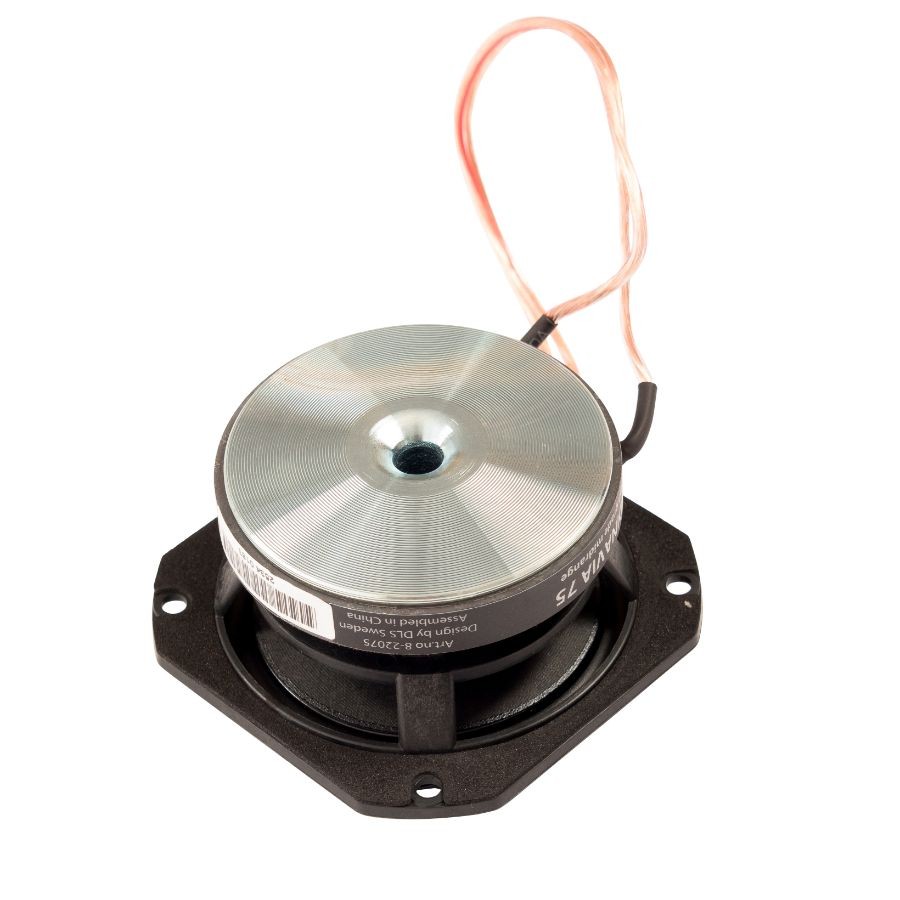

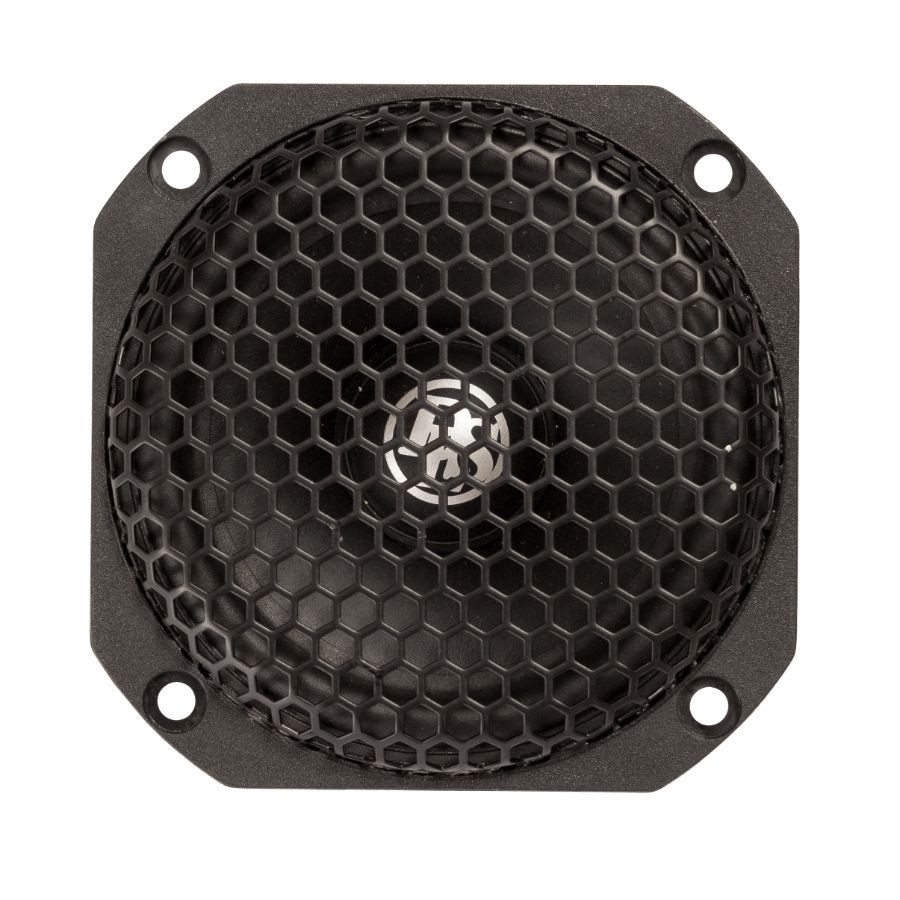

Scandinavia 75 is a 75 mm high spec coated paper midrange with balanced drive magnet circuit and extremely wide frequency range, 100 Hz – 10 kHz (in axis).
Combined with SCAND 165Wi and Scand 30 it provides unsurpassed great imaging and staging with high resolution and dynamics.
FEATURES AND BENEFITS:
– Extreme audio performance, transparent and clear sound
– Great imaging and staging capabilities
– High resolution and dynamics, rich of micro details
– Extremely wide frequency range
Install in sealed box of minimum 1 litres and maximum 4 litres.
Rec.HP X-over frequency: above 180 Hz HP and LP below 6000 Hz
Fs – Resonant frequency 100 Hz
Fs 100 Hz Re 3,5 Ohm Qms 4,95
Vas 1,59 liter Vas 0,056 Cuft Qes 0,76
Qts 0,66 Sd cm² BL 3,06
